Graphene and Boron Nitride Process solutions


Benefits

High graphene quality:  Single and multi-layers

Process capability: Investigation of early stage growth
Synthesis on metallic foils: Cu, Ni…
Single or batch samples
Continuous layer on wafers and foils.

Flexible processing for different applications

Fast growth and turnaround

Copper foil on susceptor

Copper coated silicon wafer




Graphene on CU foil Graphene on CU foil Raman shift


Pressure:  Precise control of the pressure  0.1 Torr to 760 Torr

Temperature: Precise control of the temperature from RT to 1400°C

Thermal profile: fast ramp up rate (>40°C/s) and cooling rate (up to 50°C/s)

Precursor injection: Continuous or Pulsed gas flow injection


Synthesis Growth



Graphene and Boron Nitride Rapid thermal processing equipment solutions

Features

Fast-response heater:  Infrared halogen lamp furnace
Thermal CVD: Single / multi layers for Graphene and hBN
Extended temperature range: Up to 1400°C
Proven Processes: Continuous or Pulsed gas flow injection
Fast thermal cycles: Short processes for higher throughput
Rapid thermal processing capability

Advanced Design

Cold-wall chamber technology: Fast cooling capability
Closed-loop infrared wafer temperature control
Accurate temperature control: Fast digital PID controller
Handling of CVD gases : CH4, C2H2, H2, etc.
Substrate holders: Quartz pins and graphite susceptors
Excellent reproducibility



Control

Full PC process control: Real time display & data collection
Easy recipe-editing: Step editor for process recipe
Robust control system: Industrial PLC and TCP/IP com.
System management tools and reports
Integrated safety interlocks



IR lamp furnaces IR lamp furnaces

AS one series AS One series

AS Master series AS Master series

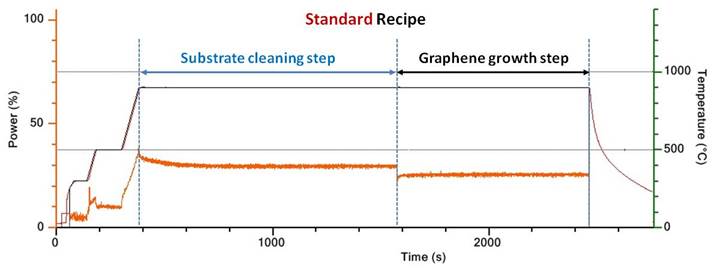

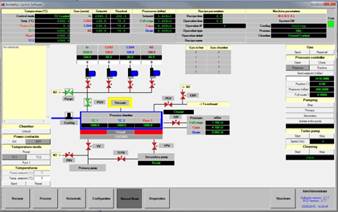

standard recipe full pc control
