RF-Plasma Source: Type BF Filament at bottom to minimize creeping effect
Please contact us to find the best suitable
model for your needs: webrequest@episerve.de
* Easy to use (DN40CF 70cm system correcting flange)
* Easy to correct
* 13.56 Mhz high brightness plasma
* No leaks PBN RF plasma cavity, no copper pipe, no brazing construction
* Highest atomic species production efficiency on the market
* GaN growth at rates in excess of several µm per hour
* Low gas consumption thanks to its high efficiency

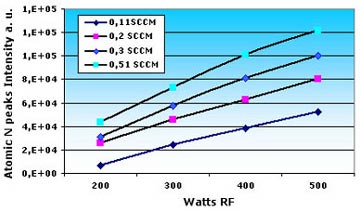

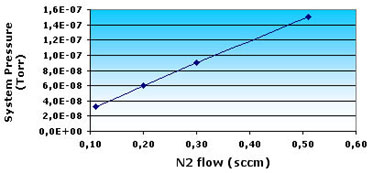

The curves show the atomic N peaks intensity of the plasma source versus RF power for different N2 flow rates, the results are obtained on a high atomic N flux ADDON RF Plasma source fitted for GaN growth. These conditions correspond to GaN growth speed varaying from 0,2 to 1,5 microns/hour. Note the small N2 flow used, thanks to the high efficiency of this unit. The following figure shows the system pressure when pumped by a 100 l /s pump.

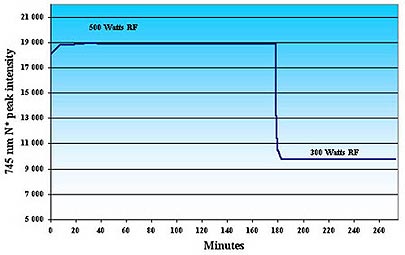

The stability of N* peaks reflects the plasma condition
stability over very long periods, as are required for Bragg mirror growth
(typically more than 10 hours for thick layers)
This source produces a flux of either Nitrogen or Oxygen
atoms by means of DC plasma dissociation of a molecular gas
( N2, O2...)
Applications
* Growth of nitrides (GaN, GaAsN, AlN, InN..)
* Nitrogen doping ( Silicon, II-VI materials)
* Hydrogen (III V, Si cleaning; surfactant effect; selective epi)
* Oxidation ( Superconductor thin films, oxides)
* Etching
* Carbon doping ( III-V doping)
* Carbonation ( SiC, diamond like materials)
* As, P, S, Se beams from solids materials.
Advantages
* Easy to install ( small connecting flange DN40CF, 2" 3/4). UHV design.
* Easy to operate with only a DC power supply.
* Stable and clean atom flux ( from 1014 to 1019 at. /cm2 s) .
* Very small heat dissipation.
* Very small plasma vessel volume permitting a very short evacuation time.
* Two access ports to the plasma volume.
ADDON RF source design
The ADDON source uses a 13.56Mhz high brightness plasma
to produce an atomic species beam from a gas (or solid). An innovative RF
cavity / coil coupling is used to obtain the highest atomic species production
efficiency on the market for an RF plasma. The source design also maintains
the cavity at a high temperature to minimise unwanted energetic ion extraction.
A novel ZC circuit gives an ease of tuning never achieved before.
The active atoms are injected into the growth chamber through a series of
small holes at the RF cavity extremity. The number of holes can be optimised
for particular applications. For example a small N atoms flux is easily
achieved for GaAsN growths by adding a low flux diaphragm
The resulting flux density permits (for example) the growth of GaN at rates
in excess of several µm per hour.
Installation
# Port: 38 CF ( 2"), minimum in-vacuum length 250 mm .
# Gas introduction: two miniflanges or VCR.
# Plasma pressure: from 0.2 to 2 torr ,
# Gas flux 0.5 to several cc / min.
# Power supply: 1200 to 2000 Volts x 40 mA.

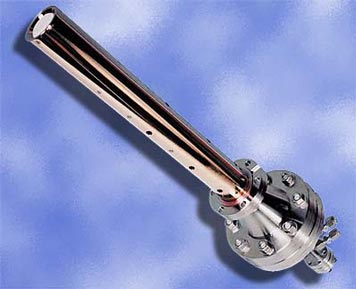

Model PRF-N-600 RF Plasma source for nitrides growth
* DN40CF (2 3/4" - 70 mm) mounting flange
* 283,5 mm In-vacuum length
* Plasma observation viewport and N2 gas inlet on miniflanges
* Integrated water cooling (approx. 0,6 l / min)
* Manual RF tuning unit with cooling fan and cable (120 or 240 volts)
* Water flow meter and water switch for generator interlock
For Ammonia, Oxygen or Hydrogen use, please
specify at order. Source model numbers are following:
Ammonia: PRF-NH-PS600
Oxygen: PRF-OX-PS600
Hydrogen: PRF-HY-PS600
Optional Plasma Monitor for atomic peaks light
detection and monitor
* This unit is mounted on the plasma viewport and permits
detection and monitoring of the optical emission of the atomic peaks (specify
the gas used in the plasma source).
* Mechanical interface
* Detector and filter
* High signal on noise I/V amplifier (10+5 to 10+9) and cables
* Order No SID-PRF
Power supply Controller/Generator
* 600 Watts - 13,56 MHz
* 7 m RF cable
* Order No PS600-PRF
Optional Atomic N beam flux restrictor for GaAsN or doping
* Source end mechanical interface
* Set of 3 diaphragms user replacable
* Order No. RD3-PRF
